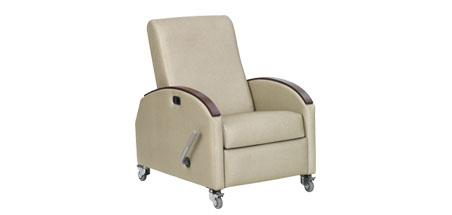

Arlington Recliner + Sleeper
Product rs2281
- 3″ diameter, locking, non-marring front and rear casters for ease of steering and mobility
- infinite position reclining system to accommodate all users preferred positioning
- able to be reclined to a horizontal position for 72″ long sleeping surface
- bariatric testing results:
- GSA Cyclic Increasing Back Load Test – passed maximum load of 175 lbs. for the maximum cycles of 125,000
- GSA Cyclic Vertical Load Test on One Arm – passed maximum load of 250 lbs. for the maximum cycles of 100,000
- GSA Cyclic Side Thrust Load Test on Arms – passed maximum load of 200 lbs. for the maximum cycles of 175,000
- GSA Cyclic Vertical Load Test on Seats, Bases and Casters – passed maximum load of 1300 lbs. for maximum cycles of 300,000
- GSA Test on Front Stability – passed maximum load of 400 lbs.
- GSA Test on Back Stability – passed maximum load of 2002.2 in-lbs.
Measurements
| w | d | h | sw | sd | sh | ah | sl | |
|---|---|---|---|---|---|---|---|---|
| rs2281 | 32 | 41 | 43 | 23 | 21 | 19 | 27 | 72 |
Product Options
Plastisol Arm Caps
Durable, black plastisol arm caps provide a reliable polymer material that is easy to clean and presents a desirable, tactile surface for hands and arms.
Wood Arm Caps
Oak and Maple species are available in a wide array of stains. All wood arm caps are finished with the most durable finish available: pre-catalyzed conversion varnish.
Push Bar
Stainless steel tube with polyamide glass ball reinforced shanks. Component width is approximately 16″
Tray Table
High density polyethylene surface for ease of cleaning and durability with chromated steel bracket rated for 44 lbs and two additional steel support hinges. Tray has solid surfaced top with recessed cup holder and spill-guard edging.
IV Pole
Aluminum pole with two light gray, plastic hooks. Connected to chair with stainless steel bracket with adjusting knob for ease of setting various heights .
Foley Bag Holder
Marine grade, nickel plated brass fitting sized for up to 1 1/4″ x 3/8″ opening.
Patient Alarm Storage Pocket
Soft shell pouch in matching fabric and provided with vinyl fabric inner-lining for ease of cleaning. All seams receive sturdy stitching and connected to chair instead of stitched into chair for ease of servicing or replacement.
Extended Back
To accommodate taller-than-average users or to provide a longer sleeping surface, this product’s back can be extended four inches.
Patient Stability Attachments
Marine grade, chrome plated zinc straps located on both sides of back and arms for assistance in stabilizing patients to avoid unintentional self-injury or harm.
Central Locking Casters
Non-marring casters provided with a three position pedal activator for either total lock or total unlock of caster wheels and swivels, as well as, an intermediate position that enables a directional lock on the front casters for ease of steering.
